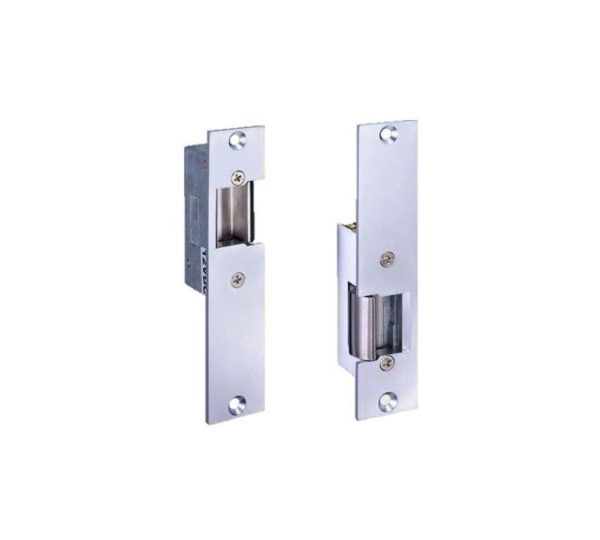

1410

Offset Residential Electric Strike

The 1410 electric strikes are designed for use with cylindrical locksets. They are fail-secure, non-handed, and fully reversible. (The 1410 strike replaces the 1401 ROFU strikes.)

Offset Residential Electric Strike

  • Designed for cylindrical locksets
  • Endurance Cycle 1,000,000 cycles
  • Static strength 800lbs
  • Fail-secure
  • Voltage options: 8-16 VAC, 12VAC/VDC, or 24 VAC/VDC (VAC for intermittent use)
  • Non-handed fully reversible
  • US26D Finish
  • Dimensions : 5 7/8” x 1 ¼” x 1 3/8″
INSTALLATION
DATA SHEET

1510

Offset Residential Electric Strike

The 1510 electric strikes are designed for use with cylindrical locksets. They are fail-secure, non-handed, and fully reversible. (The 1510 strike replaces the 1501 and 1505 ROFU strikes.)

Technical Specifications:

  • Designed for cylindrical locksets
  • Endurance Cycle 1,000,000 cycles
  • Static strength 800 lbs
  • Fail-secure
  • Voltage options: 8-16 VAC, 12VAC/VDC, or 24 VAC/VDC (VAC for intermittent use)
  • Non-handed fully reversible
  • SP28 Finish
  • Dimensions : 5 7/8” x 1 ¼” x 1 1/2″

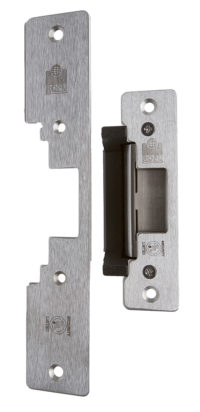

2400 KIT

Universal Door Strike

2400 Kit is a universal, burglary-resistant electric strike, compatible with a wide range of cylindrical locksets. The kit includes two faceplates and is dual voltage and field reversible between fail-safe and fail-secure. Optional accessories are specifically designed for this universal electric strike, 2402 jig is a useful tool for jamb preparation while 1” and 2” lip extensions are also available.

Technical Specifications:

  • UL Listed
  • Designed for cylindrical locksets
  • PoE friendly
  • Fail safe / fail secure
  • Includes 2 faceplates
  • Low profile : 1 ¼” depth overall
  • Static strength : 1000 lbs (454 kg)
  • Latch throw : 5/8” max with 1/8” door gap
  • Current draw : 300 mA/12 VDC; 150 mA/24 VDC
  • Dimensions : 4 7/8” x 1 ¼” x 1 ¼
INSTALLATION
DATA SHEET

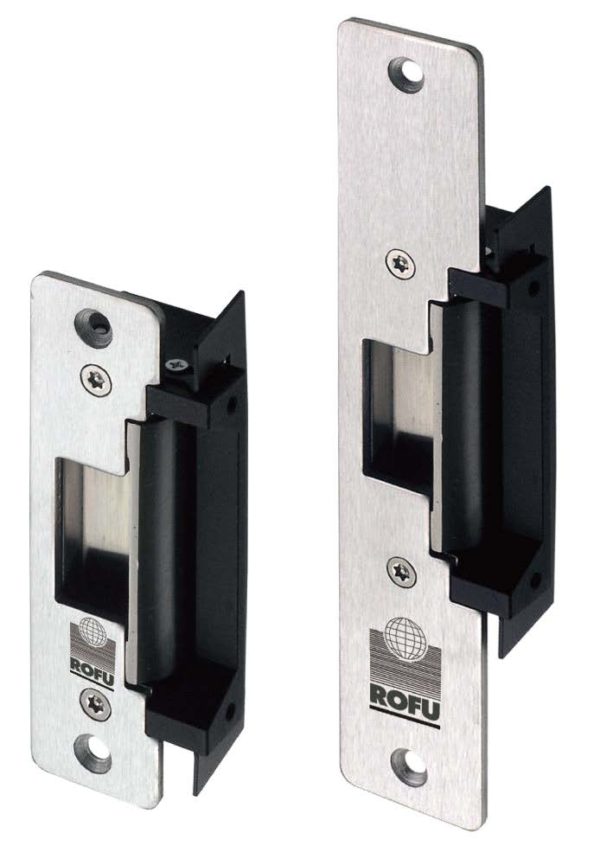

2450 KIT

Universal Door Strike

2450 Kit is a universal, UL listed electric strike, compatible with a wide range of cylindrical locksets. The 2450 Kit is dual voltage and field reversible between fail-safe and fail-secure. Included in each kit is a faceplate for prefab metal frames (4-7/8”) and a faceplate for wood frames (7-15/16”). Also, a fire rated version is available, 2450FR KIT.



Technical Specifications:

  • UL Listed
  • Designed for cylindrical locksets
  • Fail safe / fail secure
  • Includes 2 faceplates
  • Static strength : 1500 lbs (654 kg)
  • Current draw : 300 mA/12 VDC; 150 mA/24 VDC
  • Dimensions : 4 7/8” x 1 ¼” x 1 ¼”
INSTALLATION
DATA SHEET

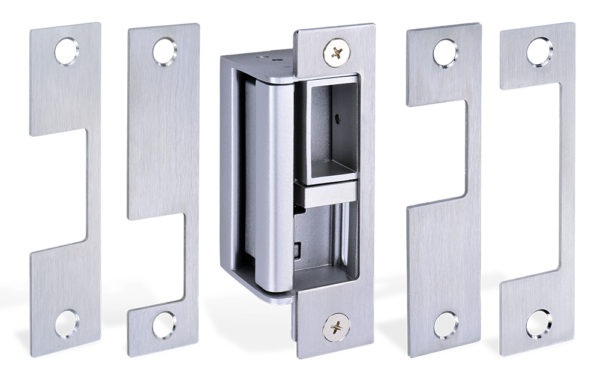

2435 KIT

Heavy Duty Door Strike

2435 Kit, complete with five heavy duty stainless steel faceplates, is designed for mortise and cylindrical locksets. It is reversible for left hand or right hand installation and operates at 12 and 24 VDC.

Technical Specifications:

  • Designed for mortise and cylindrical locksets
  • Fail safe / fail secure
  • Includes 5 face plates
  • Heavy duty stainless steel construction
  • Static Strength : 1000 lbs (454 kg)
  • Latch throw: 1” max with 1/8” door gap
  • Current Draw: 250 mA/12 VDC; 150 mA/24 VDC
  • Dimensions : 3 5/16” (4 5/8”)  x 1 5/8” x 1 13/16”
INSTALLATION
DATA SHEET

2650FR

UL Fire Rated Rim Mount Strike

The 2650FR is a full surface rim mount strike designed with strength and durability for rim exit devices with 1/2” pullman latch throw. This strike is non-handed, dual voltage (12/24 VDC), and field reversible from fail-secure to fail-safe. Available in US32D or US19 finish.

Technical Specifications:

  • ½” Latch throw
  • Designed for push bar
  • Fail safe / fail secure
  • UL Listed for burglary and fire
  • Static Strength : 1500 lbs (680 kg)
  • Current Draw: 540 mA/12 VDC; 270 mA/24 VDC
  • Dimensions : 9” x 1 ¾” x ½”
INSTALLATION
DATA SHEET

2675FR

UL Fire Rated Rim Mount Strike

The 2675FR is a full surface rim mount strike designed with strength and durability for rim exit devices with 3/4” pullman latch throw. This strike is non-handed, dual voltage (12/24 VDC), and field reversible from fail-secure to fail-safe. Available in US32D or US19 finish.



Technical Specifications:

  • ¾” Latch throw
  • Designed for push bar
  • Fail safe / fail secure
  • UL Listed for burglary and fire
  • Static Strength : 1500 lbs (680 kg)
  • Current Draw: 540 mA/12 VDC; 270 mA/24 VDC
  • Dimensions : 9” x 1 ¾” x ¾”
INSTALLATION
DATA SHEET

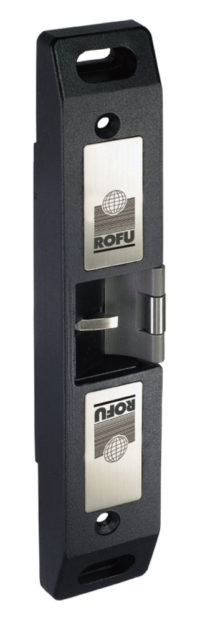

2460

Partial Surface Mount Door Strike

ROFU 2460 Rim Mount Strike is a partial surface mount electric strike designed for doors with rim exit devices. Latch and lock status monitoring is standard for 2460, and the strike operates at 12~28 VDC/VAC. The strike can be easily reversed between fail-safe and fail-secure.

Technical Specifications:

  • Partial surface mount
  • Designed for rim exit devices
  • Latch & lock monitoring
  • Fail safe / fail secure
  • Static strength : 1500 lbs (680 kg)
  • Zinc alloy construction in black finish
  • Accommodates 11/16” (17 mm) latchbolt
  • Current draw: 230 mA/12 VDC; 140 mA/28 VDC
    (440 mA/12 VAC; 230 mA/28 VAC)
  • Dimensions : 9 1/8”  x 1 9/16” x 13/16” (1 3/16”)
  •
INSTALLATION
DATA SHEET

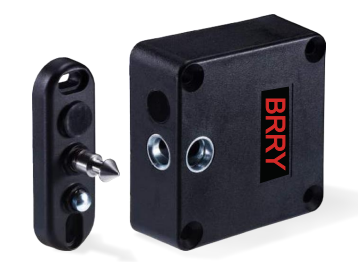

3820

Motorized Cabinet Lock

ROFU 3820 is a motorized cabinet lock suited perfectly for lockers, cabinets, cases, and drawers. The ROFU 3820 comes with embedded status sensors for lock and door. The 3820 is compatible with most common keypads or readers on the market.

Technical Specifications:

  • Versatile mounting positions
  • Designed for cabinets and gym lockers
  • Fail secure
  • Stainless steel locking pin assembly
  • Field adjustable relock time delay
  • Lock or door status monitoring
  • Current draw :
    Standby 69 mA/12 VDC; 69 mA/24 VDC
    Active 165 mA/12 VDC; 165 mA/24 VDC
  • Dimensions :
    2 3⁄8” (L) x 2 3⁄8” (W) x 7⁄8” (H)
    2 3⁄8” (L) x 13⁄16” (W) x 1⁄4” (H)
INSTALLATION
DATA SHEET
