Power Supply – BRRY

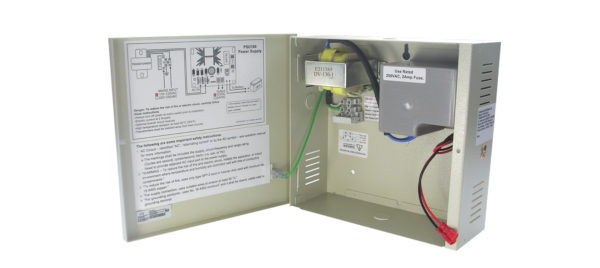

9102-12D UL / 9102-24D

Power Supply (12/24DC)

Technical Specifications:

Input: 110 VAC/60 Hz
Outputs:
- 9102-12D UL : 12 VDC, 2.0 A
- 9102-24D : 24 VDC, 1.0 A
UL Listed (9102-12D UL)
Dimension: 8 7/16” (L) x 8 7/8” (W) x 3 1/8” (D)

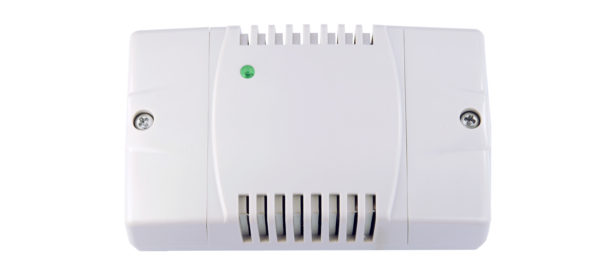

9126T

Plug In Mini Power Supply with Time Delay

Technical Specifications:

Input: 100~240 VAC , 50/60 HzVAC/60 Hz
Outputs:
- 1) 12 VDC, 1.5 A
- 2) 12 VDC, 1.0 A
Time Delay : 0~45 seconds
Dimension: 2 7/8” (L) x 5 1/6” (W) x 2” (D)

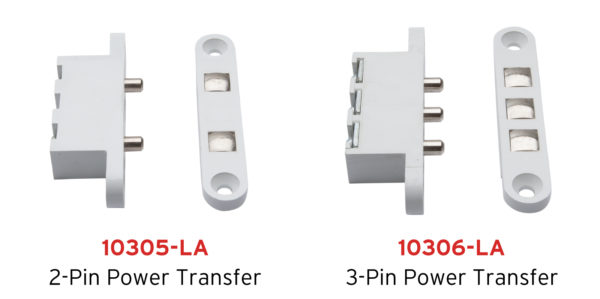

10305-LA / 10306-LA

Power Transfer Device

The 10305-LA and 10306-LA allow a power tranfer from the frame to the door leaf.

Technical Specifications:

Contact:
- 10305-LA: 2 Pins
- 10306-LA: 3 Pins
Rating: 1.5 A/42 V
Dimension:
- 10305-LA: 2.8” (L) x 0.5” (W) x 0.3” (D)
- 10306-LA: 2.8” (L) x 0.5” (W) x 1.1” (D)

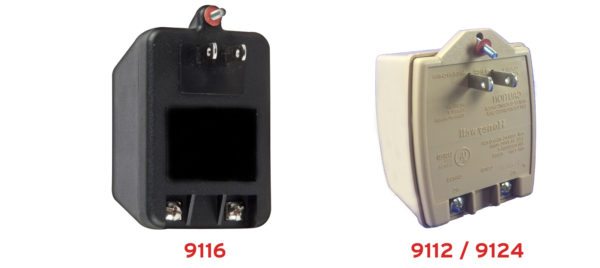

9116 / 9112 / 9124

VAC Plug In Transformers

Technical Specifications:

Input: 120 VAC/ 60 Hz
Output:
- 9112: 12 VAC, 1.5 A
- 9116: 16 VAC, 0.8 A
- 9124: 24 VAC, 0.42 A
UL Class: 2

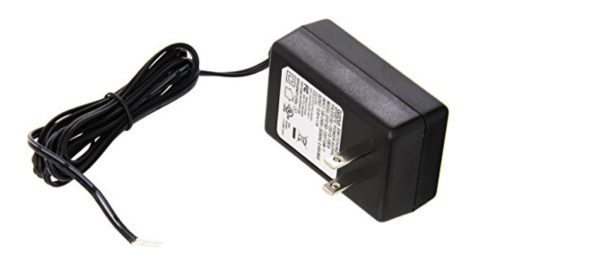

9112D / 9124D

VDC Plug In Transformers

Technical Specifications:

Input: 100~240 VAC/ 50~60 Hz
Output:
- 9112D: 12 VDC, 1.1 A
- 9124D: 24 VDC, 1.1 A
UL Class: 2
