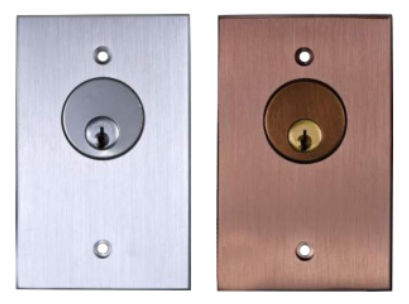

9200 SPDT key switches are compatible with standard architectural size cylinders. Complete with durable and tamper-resistant 1/4” thick aluminum cover plates and are supplied with 2 snake eyes security screws and wrench.
Technical Specifications:
Standard Plate (4 3/4” x 3” x 1/4”)
Narrow Plate (4 3/4” x 1 5/8” x 1/4”)
Cylinders are not included
Please Specify Finish: US28 (aluminum) or US40 (dark anodized bronze)

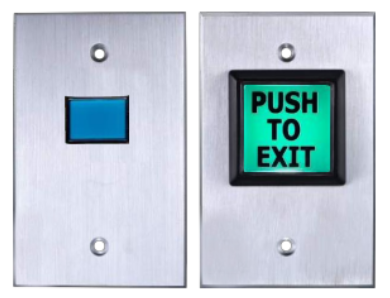

9300 REX switches are blue colored DPDT push buttons (except 9350 & 9370) with durable and tamper-resistant 1/4” thick aluminum cover plates. All are supplied with 2 snake eyes security screws and wrench.
Technical Specifications:
Standard Plate (4 3/4” x 3” x 1/4”)
Narrow Plate (4 3/4” x 1 5/8” x 1/4”)
UL Recognized Components
Blue Colored Push Button
Please Specify Finish: US28 (aluminum) or US40 (dark anodized bronze)

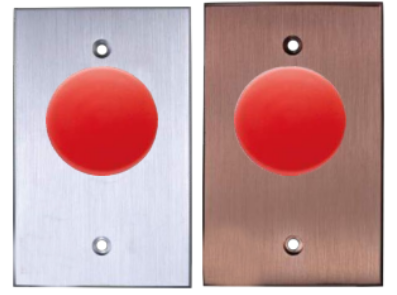

9400 REX switches feature 1 1/2” red mushroom buttons with durable and tamper-resistant, 1/4” thick aluminum cover plates. All are supplied with 2 snake eyes security screws and wrench.
Technical Specifications:
Standard Plate (4 3/4” x 3” x 1/4”)
Narrow Plate (4 3/4” x 1 5/8” x 1/4”)
UL Recognized Components.
Rating: 3A/240V
Please Specify Finish: US28 (aluminum) or US40 (dark anodized bronze)
9600 REX switches feature 2 3/8” red mushroom buttons with durable and tamper-resistant, 1/4” thick aluminum cover plates. All are supplied with 2 snake eyes security screws and wrench.
Technical Specifications:
Standard Plate (4 3/4” x 3” x 1/4”)
Narrow Plate (4 3/4” x 1 5/8” x 1/4”)
UL Recognized Components
Rating: 3 A /240 V
Please Specify Finish: US28 (aluminum) or US40 (dark anodized bronze)

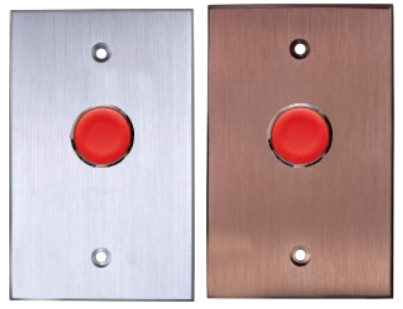

9700 REX switches feature 1 1/4” red flush head SPST with metal surround, and tamper-resistant 1/4” thick aluminum cover plates. All are supplied with 2 snake eyes security screws and wrench.
Technical Specifications:
Standard Plate (4 3/4” x 3” x 1/4”)
Narrow Plate (4 3/4” x 1 5/8” x 1/4”)
UL Recognized Components
Rating: 3 A /240 V
Please Specify Finish: US28 (aluminum) or US40 (dark anodized bronze)

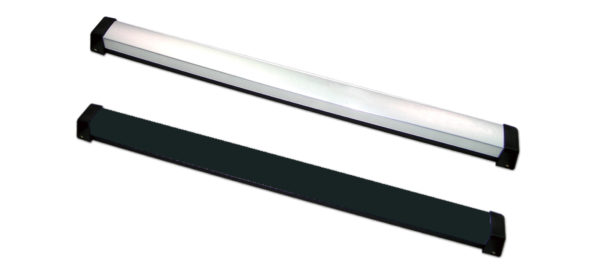

9500 Series Micro-Switch Bar is a non-latching push bar, designed to be installed on emergency doors to release magnetic locks. The 9500-36DE Delayed-Egress Micro-Switch Bar can be programmed to release the magnetic lock after 15 or 30 seconds
Technical Specifications:
Heavy duty aluminum (US28) cover
34 1/2” in length, designed for 36” doors
Double pole micro-switch output
Special key to lock the push bar in closed or open position

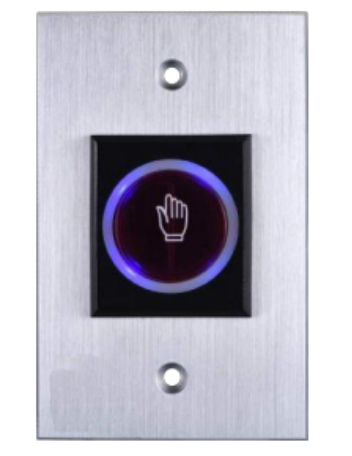

9800 Infrared Sensor Exit Button is a Exit dual-LED illuminated, wave-to-exit device that can directly control electromagnets Exit or electric strikes.

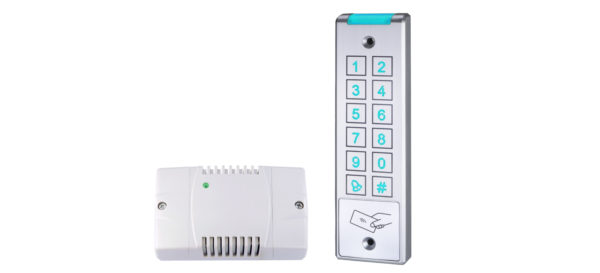

9860 Standalone Proximity Reader is a keypad and RFID reader device, completes with ROFU 9126T plug-in mini power supply. 9860 has 2 LEDs with 4 colors, a built-in buzzer and can be programmed to re-lock after 1~99 seconds.
